While stainless steel piping systems offer exceptional longevity across chemical, pharmaceutical, and offshore facilities, they are not completely immune to degradation. Unexpected piping failures often stem from localized corrosion—phenomena where rapid, concentrated metal loss occurs in specific micro-environments while the surrounding pipe surface remains visually pristine.
Understanding the electrochemical mechanics of pitting, crevice formation, stress corrosion cracking, and biological decay enables materials engineers to select the proper alloy grades, enforce effective surface finishing protocols, and implement protective operating limits.

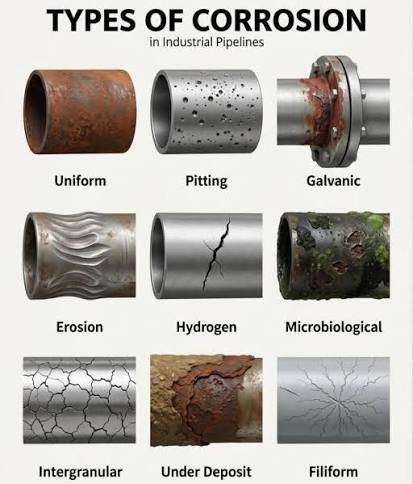

1. Localized Pitting Corrosion Mechanics
Pitting corrosion is an insidious form of localized damage that causes small, deep holes to breach the pipe wall, often leading to sudden pinhole leaks under full operating pressure.
PITTING CORROSION MECHANISM
Inert Bulk Fluid (Na+, Cl-, H2O)
─────────────────────────────────────────────────────────────────────
Passive Oxide Layer (Cr2O3) Passive Oxide Layer (Cr2O3)
══════════════════════════════ [ Pitting ] ══════════════════════════
Bulk Metal Pipe Body │ │ Bulk Metal Pipe Body
│ Cl- │ (Anode: Fe -> Fe2+ + 2e-)
│ │
└──────┘
Hydrolysis Reaction Creates Acid:
Fe2+ + 2H2O + 2Cl- -> Fe(OH)2 + 2HCl
(pH inside pit drops to < 2.0)
Electrochemical Mechanics
Pitting begins when halides—most commonly chloride ions ($text{Cl}^-$)—penetrate weak points in the protective chromium oxide ($text{Cr}_2text{O}_3$) passive film.
-
Anodic Pit Dissolution: Metal at the breakdown site oxidizes, releasing metal cations:
$$text{Fe} longrightarrow text{Fe}^{2+} + 2e^- quad text{and} quad text{Cr} longrightarrow text{Cr}^{3+} + 3e^-$$
-
Electromigration & Acidification: Negatively charged chloride ions ($text{Cl}^-$) migrate into the pit to maintain electrical neutrality. Cation hydrolysis produces free hydrochloric acid ($text{HCl}$):
$$text{Cr}^{3+} + 3text{H}_2text{O} + 3text{Cl}^- longrightarrow text{Cr(OH)}_3 + 3text{HCl}$$
-
Autocatalytic Growth: The pH inside the pit drops below $2.0$, creating an aggressive micro-environment that accelerates metal dissolution inside the pit while the outer surface remains cathodically protected.
Alloys & Critical Pitting Temperature (CPT)
Resistance to pitting is quantified using the Pitting Resistance Equivalent Number (PREN) and the Critical Pitting Temperature (CPT) according to ASTM G48:
$$text{PREN} = % text{Cr} + 3.3 times (% text{Mo} + 0.5 times % text{W}) + 16 times (% text{N})$$
-
Grade 304L ($text{PREN} approx 19$): Risk of pitting in chloride concentrations $> 200 text{ ppm}$ at ambient temperatures.
-
Grade 316L ($text{PREN} approx 25$): Resists chlorides up to $sim 1,000 text{ ppm}$ at temperatures $< 50^circtext{C}$.
-
2205 Duplex ($text{PREN} approx 35$): Handles marine splash zones and brackish waters with CPT values exceeding $60^circtext{C}$.
2. Crevice Corrosion
Crevice corrosion occurs in narrow, stagnant fluid gaps where oxygen replenishment is restricted. Common sites include flange gasket faces, threaded pipe fittings, under-pipe support clamps, and un-penetrated socket welds.
Mechanism & Critical Crevice Temperature (CCT)
Because fluid inside a crevice ($< 0.1 text{ mm}$ gap) cannot circulate freely, dissolved oxygen within the gap is rapidly consumed by initial passive film repair.
Once oxygen is depleted inside the crevice, the metal inside the gap becomes an anode, while the exposed pipe wall acts as a cathode. Chloride ions migrate into the gap, lowering the local pH and initiating rapid crevice attack. The Critical Crevice Temperature (CCT) is typically $15^circtext{C} text{ to } 20^circtext{C}$ lower than the Critical Pitting Temperature for the same alloy.
3. Chloride Stress Corrosion Cracking (CSCC)
Chloride Stress Corrosion Cracking is an environmental cracking mechanism that causes sudden, brittle failure in ductile austenitic stainless steel pipes without visible warning.
$$text{CSCC Risk Factors} = text{Austenitic Microstructure} + text{Chloride Concentration} + text{Tensile Stress} + text{Temperature } (> 60^circtext{C})$$
CSCC TRIPLE-THREAT ALLIANCE
High Tensile Stresses
(Residual Weld / Pressure)
/
/
/
/
Warm Temperatures (> 60°C) ──────── Chloride Ions (> 10 ppm)
Failure Characteristics:
-
Microstructure: Standard austenitic grades (304/304L and 316/316L) are highly susceptible. Ferritic grades and duplex grades (2205/2507) offer significantly higher resistance.
-
Stress Threshold: Tensile stress can originate from operating internal pressure, thermal expansion, or un-relieved residual stresses introduced during pipe cold bending or welding.
-
Crack Propagation: Cracks propagate in a fine, multi-branched transgranular path through the metal grains, causing sudden pipe rupture.
4. Microbiologically Influenced Corrosion (MIC)
Microbiologically Influenced Corrosion occurs in raw water cooling systems, stagnant fire loops, oilfield water flooding lines, and hydro-test water left undrained in piping loops.
Biological Mechanisms
MIC is caused by metabolic activity from complex microbial biofilms adhering to the inner pipe wall:
-
Sulfate-Reducing Bacteria (SRB): Anaerobic bacteria (e.g., Desulfovibrio) thrive beneath thick bio-mounds in zero-oxygen zones. They reduce sulfate ($text{SO}_4^{2-}$) to corrosive hydrogen sulfide ($text{H}_2text{S}$), producing deep, smooth-edged pits filled with black iron sulfide ($text{FeS}$).
-
Iron/Manganese-Oxidizing Bacteria: Aerobic microbes oxidize soluble ferrous iron to insoluble ferric hydroxides, forming large, hemispherical mounds (tubercles) on the pipe surface that induce severe crevice corrosion underneath.
5. Comprehensive Corrosion Prevention Checklist
|
Prevention Strategy |
Target Mechanism |
Operational & Engineering Protocol |
|
Alloy Upgrading |
Pitting, CSCC |
Replace $304text{L}/316text{L}$ with 2205 Duplex or 6% Mo Super-Austenitic alloys in hot halide lines ($> 60^circtext{C}$). |
|
Drainage & Hydrotesting |
MIC |
Use demineralized water for hydrostatic testing; drain completely and dry within $48text{ hours}$ using dry nitrogen or filtered air. |
|
Chemical Passivation |
Pitting, Crevice |
Treat welded lines with Citric Acid (ASTM A967) or Nitric Acid to remove free iron contaminants and build a thick $text{Cr}_2text{O}_3$ film. |
|
Flange Gasket Selection |
Crevice |
Use non-porous elastomeric or compressed fiber gaskets; eliminate socket welds in favor of butt welds in aggressive service. |
|
Biocide Management |
MIC |
Dose stagnant or raw water systems with non-oxidizing biocides or maintained free-chlorine levels ($< 2.0text{ ppm}$) to inhibit biofilm growth. |
Summary: Stainless steel pipe longevity depends on preventing localized corrosion cell development. Specifying high-PREN alloys, eliminating tight crevice geometries, stress-relieving warm chloride lines, draining hydro-test fluids within 48 hours, and maintaining clean, passivated inner surfaces prevent premature piping system failures.
